Truck Rescue Vehicles with On-Board 4-ton 5-ton 10-ton Hydraulic Winches for Cranes 24V/12V 50m Steel Wire Rope Clutches
| Power Source: | Hydraulic | Maximum Lifting Height: | 50 Meters, 10 M, 3 M |
| Material: | Steel | rope material: | Steel Wire. |
| Rope Type: | Steel Wire | wire rope diameter: | 1.5mm |
| Application: | Cranes | Controller Cord Length: | 10ft |
| Customized support: | Odm | End Type: | Other |
| Product Type: | Handle, Remote Control, Other | rope length: | 50 Meters |
| Standard: | Other | Strap length: | 50ft |
| Strap width: | 2 In | Voltage: | 12 V, 24 V |
| Warranty: | 1 Year, 1 Year | Winch Bar Design: | Other |
| Winch Mounting Location: | Bottom | Product name: | Hydraulic Pulling Winch |
| Capacity: | 4T 5T 10T | Motor: | Hydraulic Motor |
| Usage: | Towing Line | Type: | Liftling Equipment |
| Power supply: | 24V 12V | Power: | 710 W |
| High Light: | Truck hydraulic winches 4-ton 24V,Rescue vehicle winches 10-ton steel rope,Crane winches 5-ton 50m wire |
||

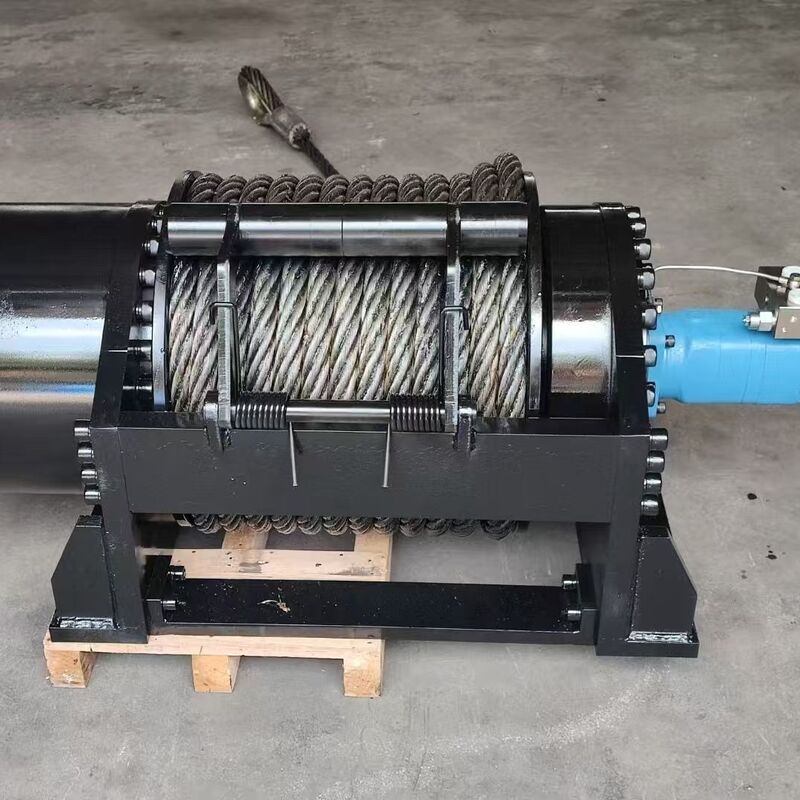

Vehicle-mounted hydraulic winch:
For hydraulic winching applications,we are professional . Powerful hydraulic motors allow for extended duty. Hardened steel gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with worldwide quality and safety standards.
- + Heavy duty, high-flow hydraulic motor
- + Standard roller tensioner and drum brake provide optimal rope winding
- + Mechanically locked clutch with smooth action.
- + Efficient planetary gear design allows for long-term lubrication with grease
- + Easy access and servicing; all internal components are available as complete assemblies
- + Large drum diameter for longer wire rope life with less kinking; SAE J706 compliment
- + Automatic, spring applied disc brake; highly reliable and robust; complies fully with ISO CE standard
Product |
Vehicle-mounted hydraulic winch |
Model |
BST-4 BST-5 BST-10 |
Line pull capacity (1st layer) |
3 ton 5 tons 10 tons |
Pulling force (4th layer) |
30 KN |
Drum output torque |
5918 Nm |
Wire rope capacity |
145 m |
Wire rope diameter |
12.5 mm |
Drum diameter |
330 mm |
Drum width |
450 mm |
Rope tensioner |
Optional spring |
Application |
hoisting works for truck crane, wrecker, recovery truck, tow truck, self loader platform, etc |
Rope guide is customized according to customer needs, to avoid wire rope winding disorder, the equipment is very practical, synchronized with the drum speed, so that the wire rope is safer, longer service life.
Hydraulic winch can be used in what kind of engineering vehicles, ships, and small space workshops or construction sites, is a very practical towing tool
painting workshop
Electric winch tension test platform
The control box of the winch.
According to the needs of customers, most of our products are shipped in containers, if the width of the main beam is more than 13 meters, we will scientifically disconnect, convenient packing.
Before sale: We will provide you the price quotation offer with actural & quality products details pictures, spare parts list & pictures, videos, 3D product design, help you to check shipping freight etc.
During sale: Update your order process is our responsibility, and send you production pictures, videos etc., just like you are here with yourorder production.
After sale: Send you loading container pictures, follow up & update you container process, try our best to help you make the customs clearance.
Q. What's the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q.How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
