10-Ton Hydraulic Winch Manual Drum Lock Steel Wire Rope Guide Boat Cranes Auto Ship Anchor Release Quick Release Remote Control
| Place of Origin | HENAN |
| Brand Name | BALANCE |
| Certification | ISO CE |
| Model Number | BLC-100 |
10-ton hydraulic winch manual drum
,steel wire rope boat crane
,quick release remote control winch
Fast speed hydraulic winch:
For hydraulic winching applications,we are professional . Powerful hydraulic motors allow for extended duty. Hardened steel gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with worldwide quality and safety standards.
product superiority:
- Heavy duty, high-flow hydraulic motor
- Standard roller tensioner and drum brake provide optimal rope winding
- Mechanically locked clutch with smooth action.
- Efficient planetary gear design allows for long-term lubrication with grease
- Easy access and servicing; all internal components are available as complete assemblies
- Large drum diameter for longer wire rope life with less kinking; SAE J706 compliment
- Automatic, spring applied disc brake; highly reliable and robust; complies fully with ISO CE standard

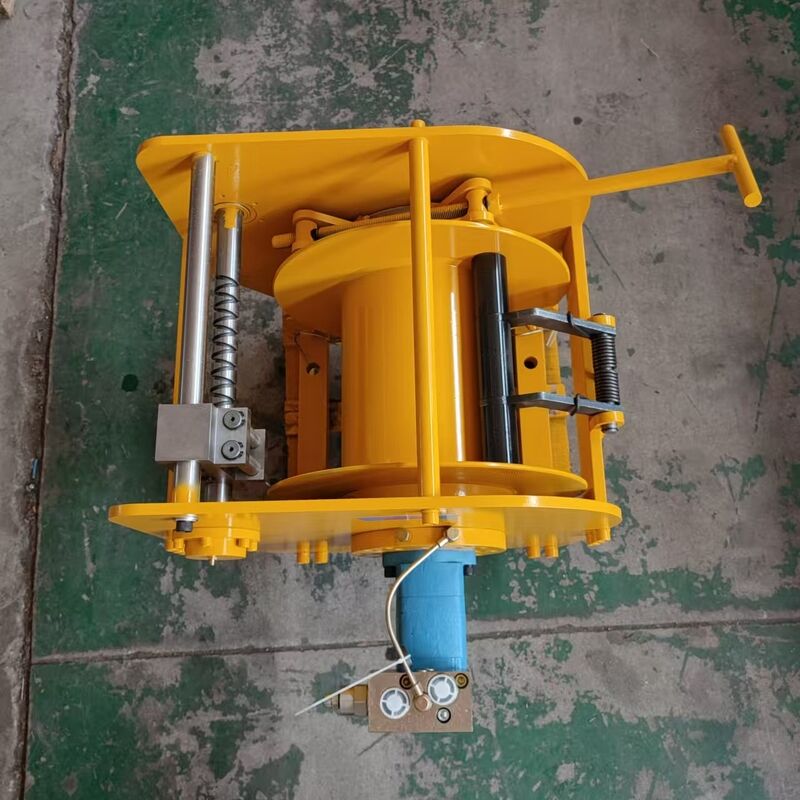

winch with rope guide
Rope guide is customized according to customer needs, to avoid wire rope winding disorder, the equipment is very practical, synchronized with the drum speed, so that the wire rope is safer, longer service life.
hydraulic winch widely used.
Hydraulic winch can be used in what kind of engineering vehicles, ships, and small space workshops or construction sites, is a very practical towing tool
| Product | Hydraulic hoisting winch |
| Model | DQ5B30E |
| Line pull capacity (1st layer) | 3 ton |
| Pulling force (4th layer) | 30 KN |
| Drum output torque | 5918 Nm |
| Wire rope capacity | 145 m |
| Wire rope diameter | 12.5 mm |
| Drum diameter | 330 mm |
| Drum width | 450 mm |
| Rope tensioner | Optional spring |
| Application | hoisting works for truck crane, wrecker, recovery truck, tow truck, self loader platform, etc |
