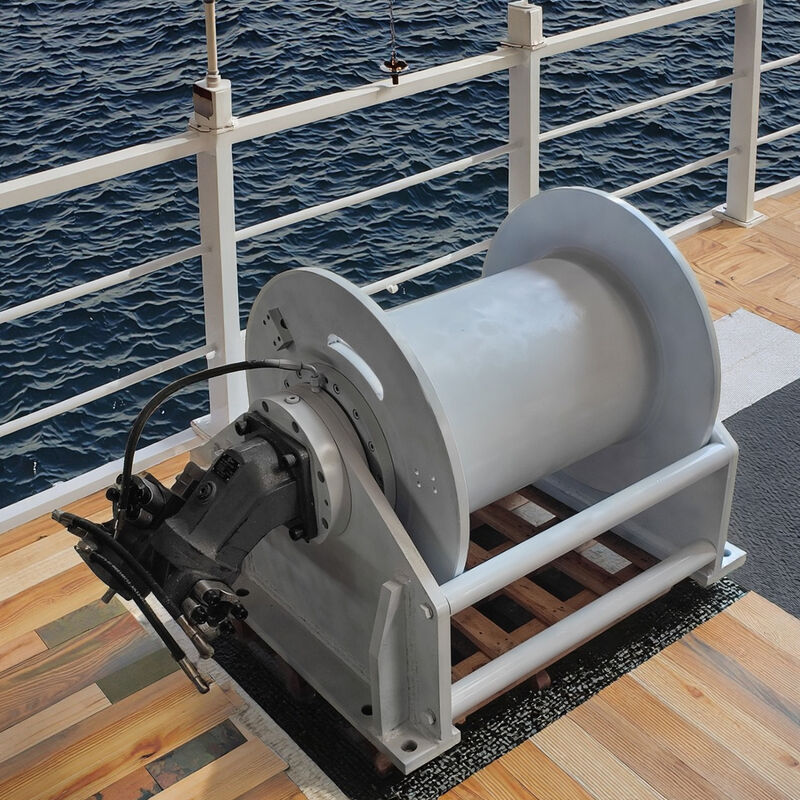

Hydraulic Winch Remote Control Shallow Sea Sampling 500-Meter Range 50 Meters/Minute Speed Boats
|
Hydraulic Winch Remote Control Shallow Sea Sampling 500-Meter Range 50 Meters/Minute Speed Boats
| Place of Origin | HENAN |
| Brand Name | BALANCE |
| Certification | ISO CE |
| Model Number | BLC-300 |
Product Details
Material:
Stainless Steel, Metal, Stainless Steel 316
Rope Material:
Stainless Steel
Rope Type:
Steel Wire, Synthetic
Wire Rope Diameter:
16mm, 18mm
Application:
Boat, Cranes, Other, Auto
Customized Support:
OEM, ODM, OBM
End Type:
Chain Extension, D-Ring
Product Type:
Hook, Remote Control
Rope Length:
50 Meters, 15m
Standard:
Wstda, CVSA
Strap Length:
100ft, 50ft
Strap Width:
2 In, 4 In
Warranty:
1 Year, 1 Year
Winch Bar Design:
Combination, Standard
Winch Mounting Location:
Bottom, Sliding Track
Product Name:
Hydraulic Winch
Color:
Customer's Request
Brake:
Winch Automatic Brake
Packing:
Wooden Case
Control:
Remote Switch
Rope Type:
Steel Wire
Rope Capacity:
10 ~ 1000m
Maximum Lifting Height:
10 M, 50 Meters
Controller Cord Length:
10ft, 15 Ft
Power:
710 W
Voltage:
480 V, 220 V, 400v
Highlight:
hydraulic winch remote control 500-meter range
,shallow sea sampling winch 50 meters/minute
,boat winch remote control hydraulic system
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$590-760 / set
Product Description
Products Description
Fast speed hydraulic winch:
For hydraulic winching applications,we are professional . Powerful hydraulic motors allow for extended duty. Hardened steel gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with worldwide quality and safety standards.
Product superiority:
- Heavy duty, high-flow hydraulic motor
- Standard roller tensioner and drum brake provide optimal rope winding
- Mechanically locked clutch with smooth action.
- Efficient planetary gear design allows for long-term lubrication with grease
- Easy access and servicing; all internal components are available as complete assemblies
- Large drum diameter for longer wire rope life with less kinking; SAE J706 compliment
- Automatic, spring applied disc brake; highly reliable and robust; complies fully with ISO CE standard
Product Paramenters
winch with rope guide
Rope guide is customized according to customer needs, to avoid wire rope winding disorder, the equipment is very practical, synchronized with the drum speed, so that the wire rope is safer, longer service life.
hydraulic winch widely used.
Hydraulic winch can be used in what kind of engineering vehicles, ships, and small space workshops or construction sites, is a very practical towing tool
| Product | Hydraulic hoisting winch |
| Model | DQ5B30E |
| Line pull capacity (1st layer) | 3 ton |
| Pulling force (4th layer) | 30 KN |
| Drum output torque | 5918 Nm |
| Wire rope capacity | 145 m |
| Wire rope diameter | 12.5 mm |
| Drum diameter | 330 mm |
| Drum width | 450 mm |
| Rope tensioner | Optional spring |
| Application | hoisting works for truck crane, wrecker, recovery truck, tow truck, self loader platform, etc |
